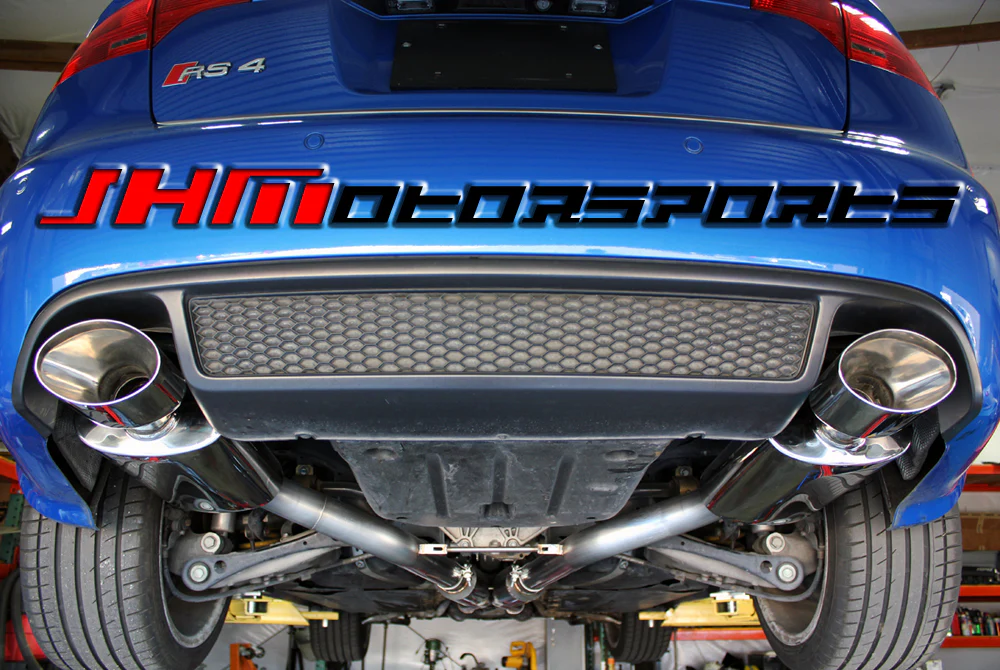

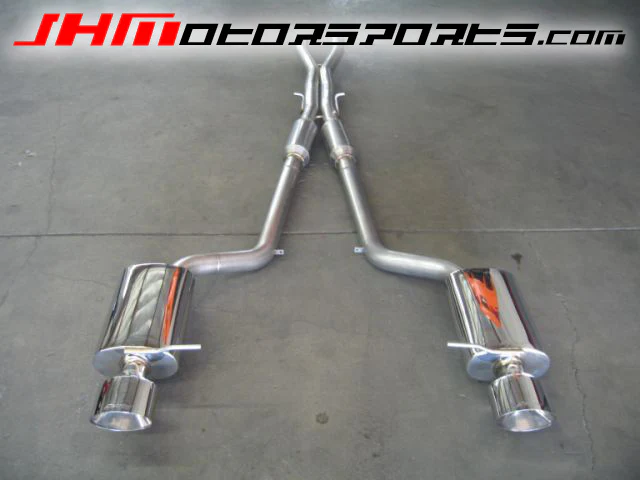

Introducing the much anticipated JHMotorsports 2.75 Inch Cat-Back Exhaust System for the B7-RS4 4.2L FSI 32v V8!!!

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS6

Click to enlarge picture
Audi Exhaust/Cat/Back/ B7/RS4 Stainless Steel 2.75 Inch

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS6

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS7

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS10

Click to enlarge picture
Audi Exhaust/Cat/Back/ B7/RS4 Stainless Steel 2.75 Inch

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS8

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS9

Why 2.75 Inch piping diameter? After much research, calculations, testing and development we found that based on the 4.2L 32v V8 engine's demands, 2.75 Inch piping diameter is the optimal size. With a 2.5 inch exhaust you end up choking off the RS4's free spinning and high-revving V8. We have also found with a 2.75 inch cat back that torque is not sacrificed for power gains in the top end of the RPM band.

Why an X-pipe? Naturally Aspirated V8s always make more power with an X-pipe. The location and size of the X-Pipe in the JHM B7-RS4 Cat-Back Exhaust System has been meticulously researched and developed to produce the best scavenging of the exhaust pulses coming from either side of the motor. The location of our X-Pipe also gives the 32-valve V8 motor a cleaner, more refined tone.

JHM B7-RS4 2.75 Inch Exhaust X-Pipe:

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS12

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS13

JHM B7-RS4 2.75 Inch Exhaust System Build Quality: Our B7-RS4 Exhaust Systems are made entirely of stainless steel and crafted with the utmost attention to detail:

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS11

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS5

Click to enlarge picture
Audi Exhaust/Cat/Back/ B7/RS4 Stainless Steel 2.75 Inch

Parts Included: Our complete 2.75 Inch Cat-Back Exhaust System with dual 2.75 inch stainless steel piping includes the following:
- X-Pipe Section (Resonated or Un-resonated)
- 2x free flowing mufflers
- 4x 2.75 Inch Clamps
- 2x Rear Hanger Adjustment Clamps
- 1x Rear Section Adjustment Bar with Hardware

Options:

- Resonators: The JHM B7-RS4 2.75 Inch Cat-Back Exhaust System can be purchased with a RESONATED or UN-RESONATED X-Pipe section. Select your desired configuration from the dropdown menu below.

X-Pipe Options:

Click to enlarge picture
Audi Exhaust - Full - 2.75 Inch Downpipes and Cat-Back, B7-RS14

NOTE: If you are planning to use this system with stock downpipes or downpipes with a stock downpipe connection size you will need to purchase our downpipe connection reducers - https://jackalmotorsports.com/products/jhm-b7-rs4-stock-down-pipe-adapters

Note about build time and availability: MADE TO ORDER - ETAs can vary

This product fits the following vehicles:

Make	Model	Chassis	Engine
Audi	RS4	B7 (2006-2009)	4.2l V8 32v FSI

B7 RS4

JHM B7 RS4 2.75" Cat back Exhaust

JHM B7 RS4 Stock down pipe adapters

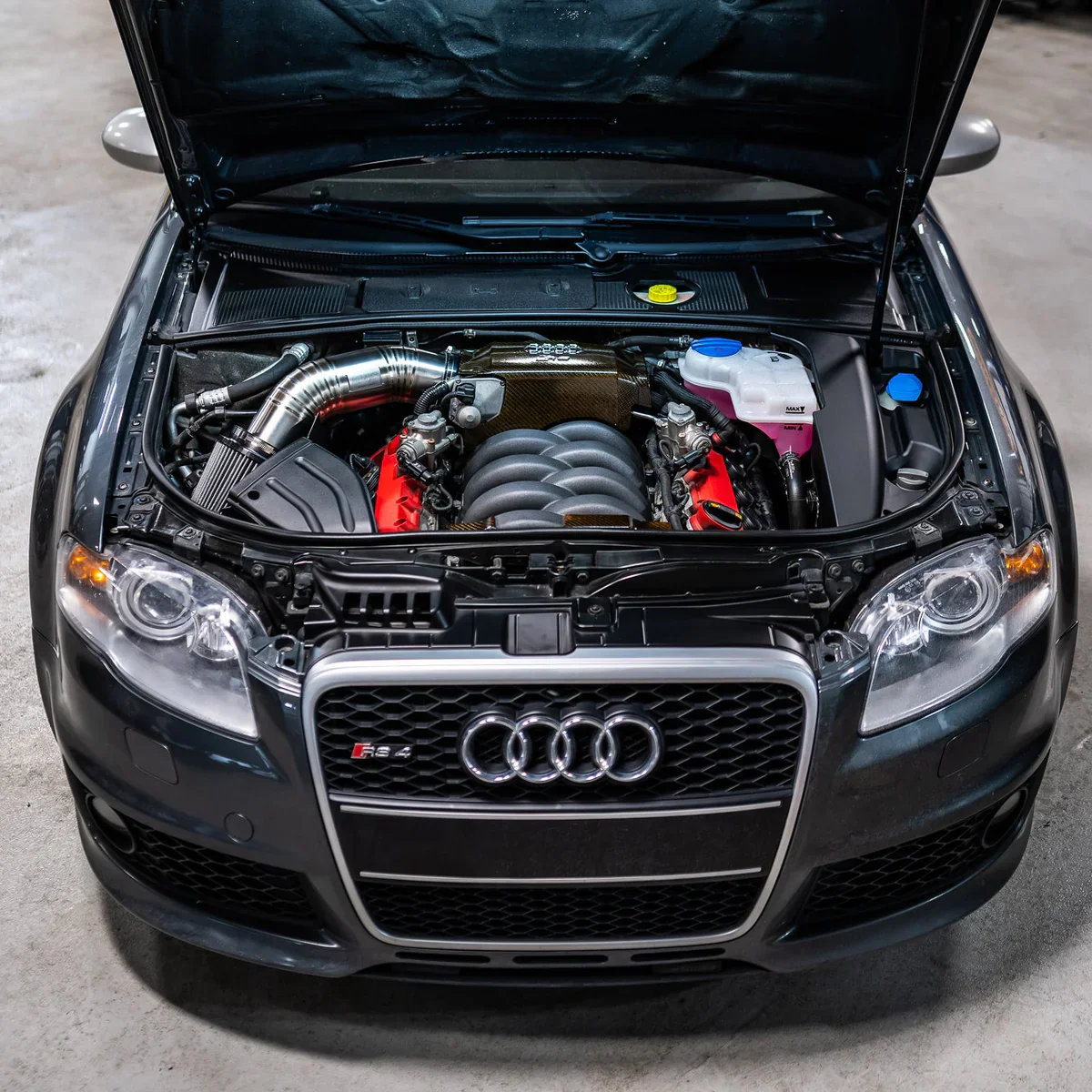

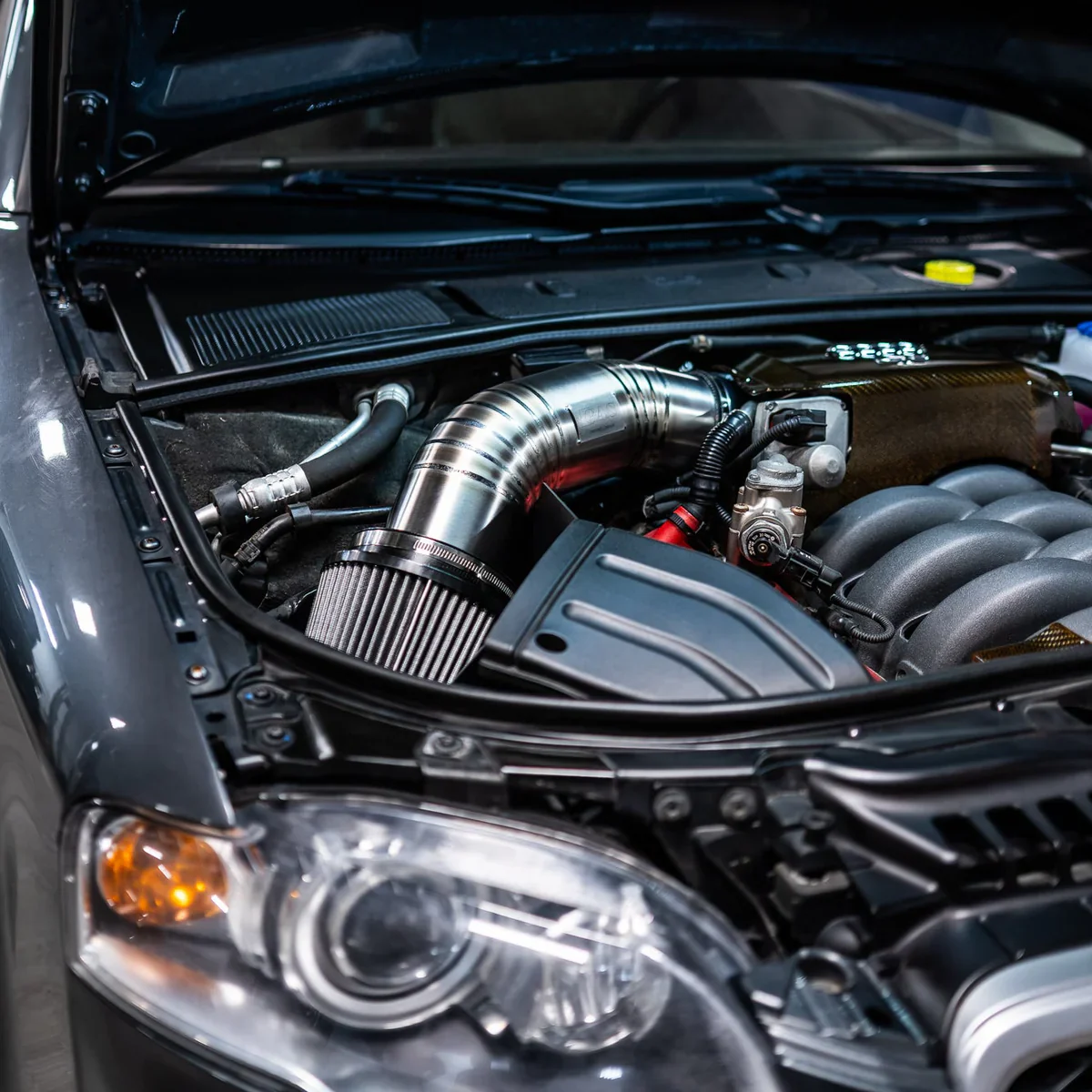

GAS Omega V2 102mm Titanium B7 RS4 Intake

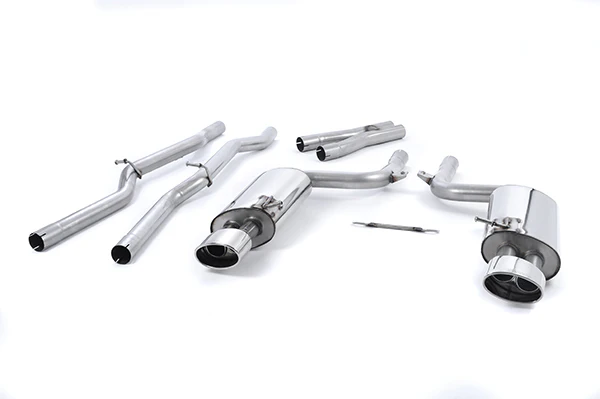

Milltek B7 RS4 Catback Exhaust
